Glass Disc Machine for Plastic & Rubber Parts Inspection

Glass Disc Machine for Plastic & Rubber Parts Inspection
Enquiry For Product Details
x
Name : Enter Your Mobile No: Enquiry for product:

Glass Disc Machine for Plastic & Rubber Parts Inspection Introduction:

Key Features

  • Thread Present/ Absent
  • Quantity wise separate OK Ejections
  • Manual as well as Auto loading systems.
  • Inspection Speed up to 500 PPM.
  • Detailed Dimensional & Surface Defects Inspection

Can Inspect

  • Fasteners
  • Plastic & Rubber Parts
  • Precision machine parts
  • Precision automotive components

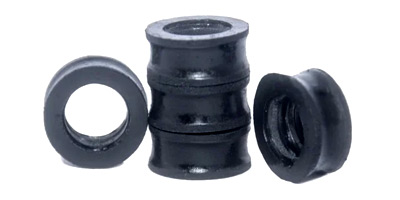

Sample Parts

Glass Disc Machine for Plastic parts sample parts including Precision automotive components
Sample parts for Glass Disc Machine for Plastic & Rubber including Plastic & Rubber Parts

Inspection Parameters:

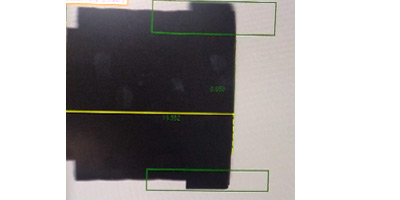

Dimensions: -

  • Inner Diameter
  • Outer Diameter,
  • Angle
  • Height
  • metrological parameters

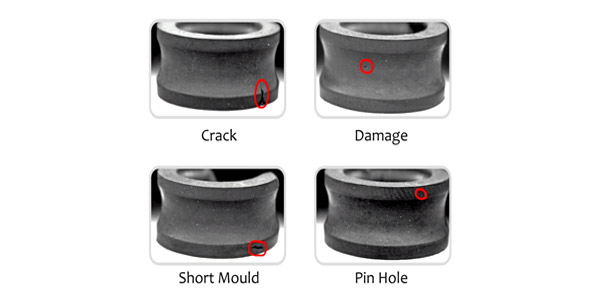

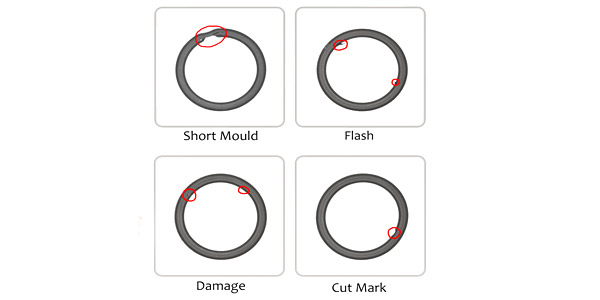

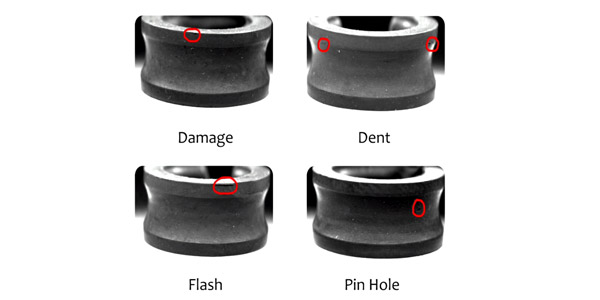

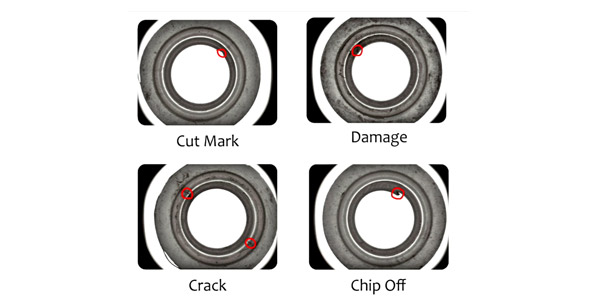

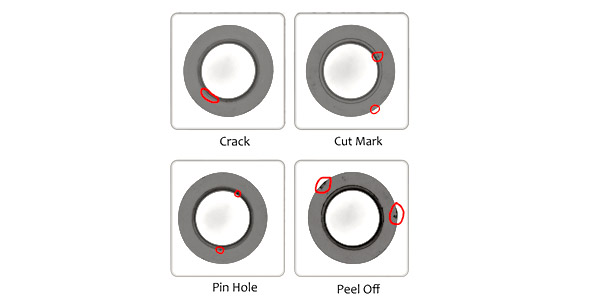

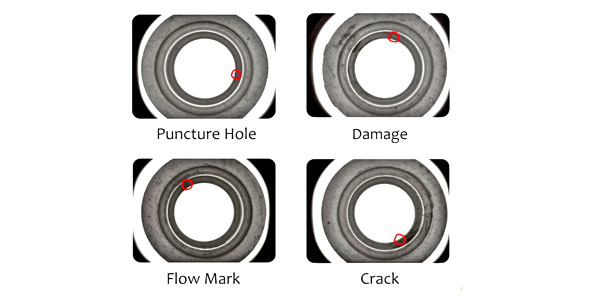

Surface Defects: -

colour detection, scratch detection, dent, flash, burr, cut marks, flow mark, damage, short mould, crack, texture verification, surface deformities detection, foreign material

Other: -

Operation missing, absence/presence verification, OCR-OCV

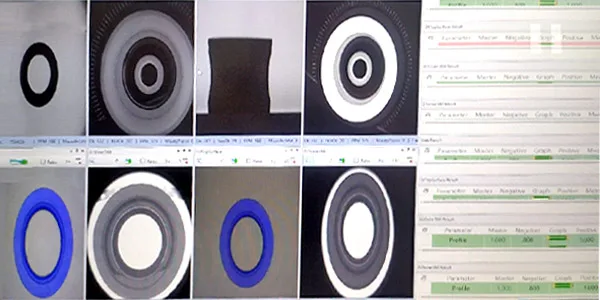

Specifications:

Camera
Position
Operations
1st
Top
OD, ID Inspection
2nd
Side
Side Dimension Inspection
3rd
Taper
Internal Thread Present/ Absent
4th
Top
Top Surface Defects
5th
Bottom
Bottom Surface Defects

*Repeatability will be measured on OD of Master Part.
>>>>>>>>>>>>
