Glass Disc Machine for Bolts Inspection

Glass Disc Machine for Bolts Inspection
Enquiry For Product Details
x
Name : Enter Your Mobile No: Enquiry for product:

Glass Disc Machine for Bolts Inspection Introduction:

Key Features

  • Manual as well as Auto loading systems.
  • Inspection Speed up to 500 PPM.
  • Detailed Dimensional & Surface Defects Inspection
  • Quantity wise separate OK Ejections
  • Can check OCR &
  • Thread Present/ Absent

Can Inspect

  • Fasteners
  • Precision machine parts
  • Turned components
  • Precision brass components
  • Precision automotive components

Sample Parts

Sample parts can inspected by Glass Disc Machine for Bolts Inspection Machine including Hex Bolts, Hex Bolts with Flange, Allen Bolts, CSK Bolts
Glass Disc Machine for Bolts Sample parts including Square Head Bolts, CSK Bolts, Machine Screws, Studs

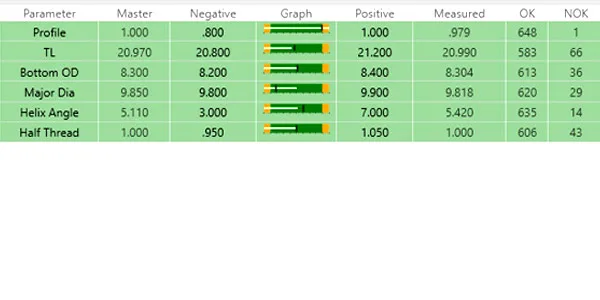

Inspection Parameters:

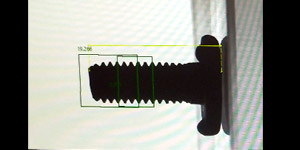

Dimensions: -

  • Angle
  • Height
  • half thread
  • Inner Diameter
  • Outer Diameter,
  • Major Dia, Minor Dia, PCD
  • metrological parameters
  • thread presence/ absence

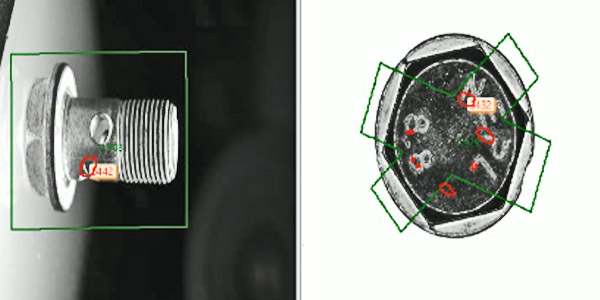

Surface Defects: -

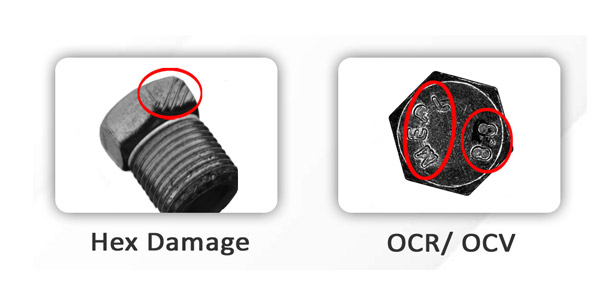

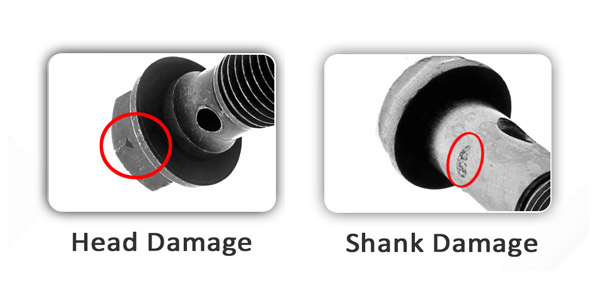

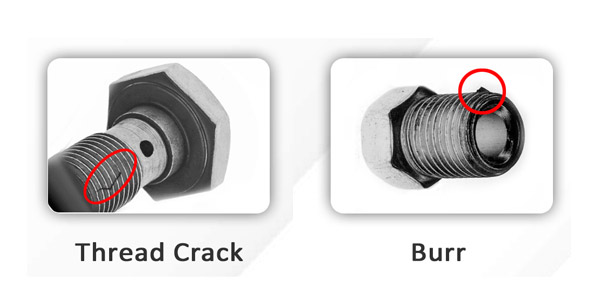

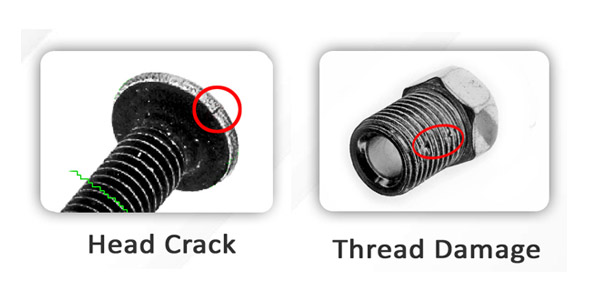

dent detection, damage, cut marks, crack, scratch detection, burr, surface deformities detection, thread damage, colour detection, texture verification,

Other: -

Hole detection, OCR-OCV, operation missing, absence/presence verification

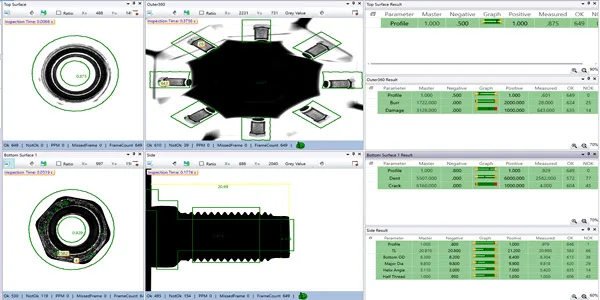

Specifications:

Camera
Position
Operations
1st
Top
OD, ID Inspection
2nd
Side
Side Dimension Inspection
3rd
Taper
Internal Thread Present/ Absent
4th
Top
Top Surface Defects
5th
Bottom
Bottom Surface Defects

* Repeatability will be measured on OD of Master Part.
>>>>>>>>
