What dimensions can the Horizontal Visigauge inspect?

The Horizontal Visigauge can inspect and check more than 25 dimensional parameters, including outer diameter, inner diameter, length, step dimensions, angle, radius, chamfer angle, chamfer width, thread major diameter, thread minor diameter, thread helix angle, thread PCD, reverse threads, and other geometric features of precision components.

What accuracy and repeatability does the Horizontal Visigauge provide?

The Horizontal Visigauge provides repeatability starting from 1 micron for high-precision non-contact measurement of turned parts, threaded components, precision components, brass components and other precision-engineered parts.

Which industries use the Horizontal Visigauge?

The Horizontal Visigauge is widely used in fasteners, automotive components, precision machining, electrical components, medical components, and other manufacturing industries requiring accurate dimensional inspection and quality control.

Horizontal Visigauge introduction:

Key Features

Repeatability starts from 1 micron*.
One click measurement with high precision.
Easy operation, Simple and user friendly teaching.
One unique instrument to inspect more than 25 dimensions in a fraction of second.

Can Inspect

Small Plastic parts
Turned components
Automotive components
Precision machined parts
Precision brass components

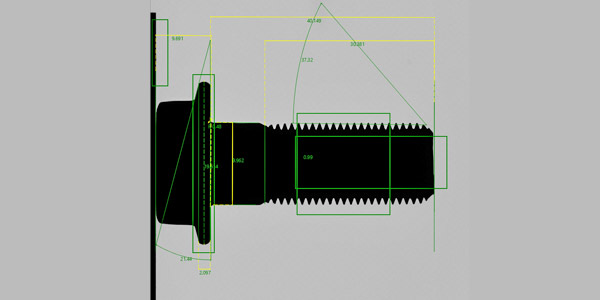

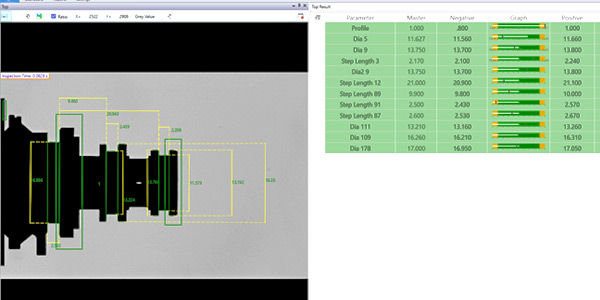

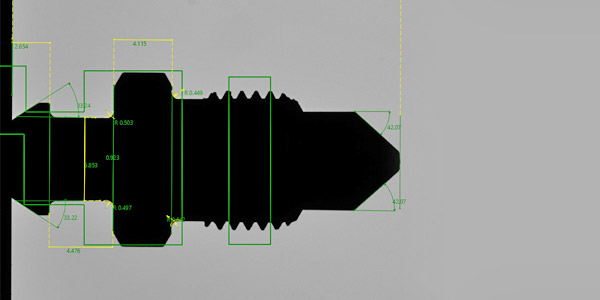

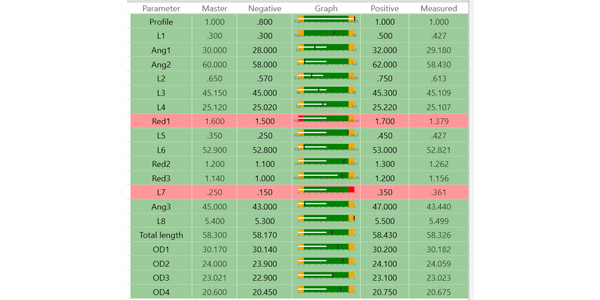

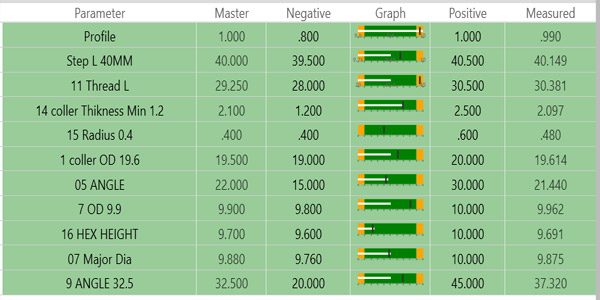

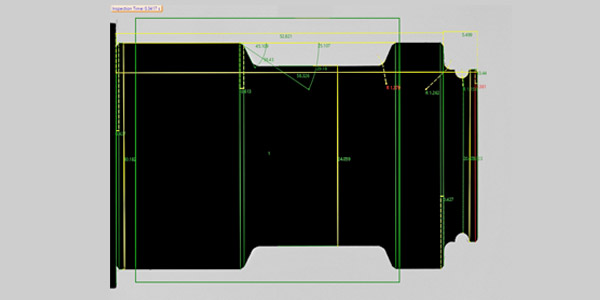

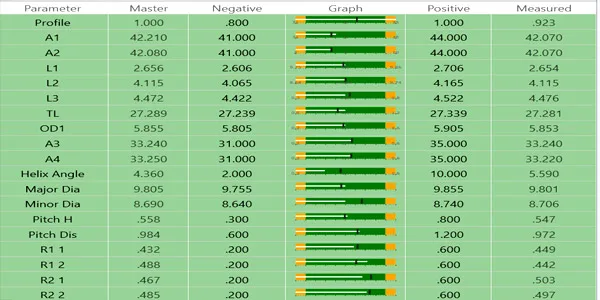

Sample Parts

Horizontal Visigauge Overview

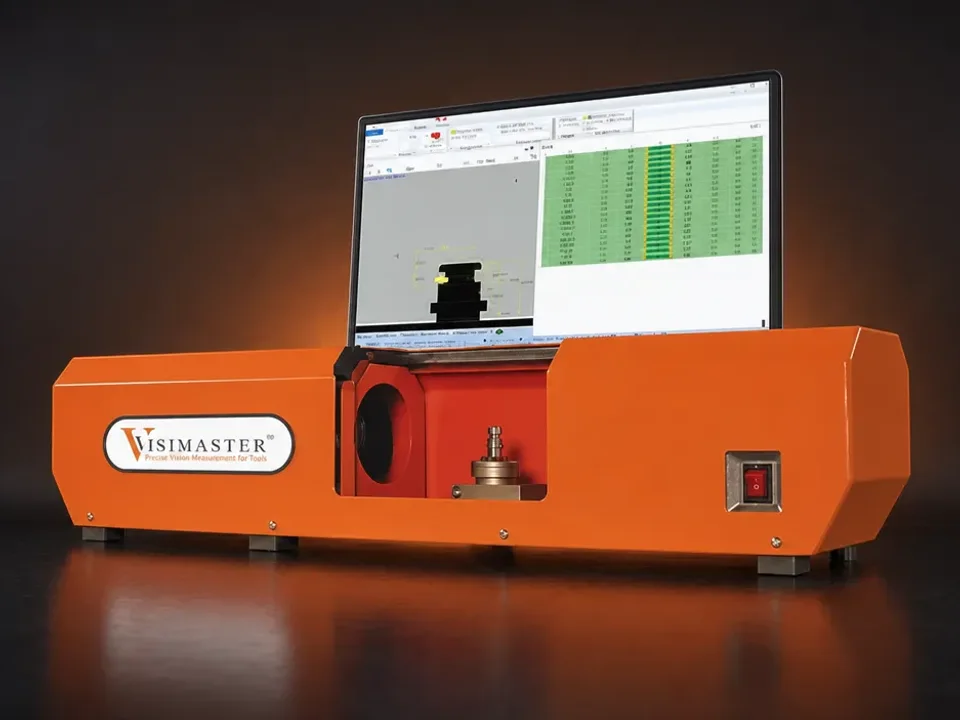

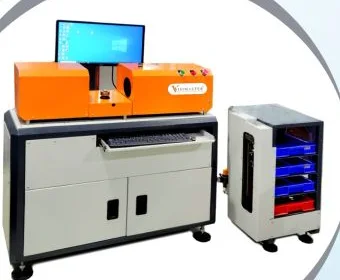

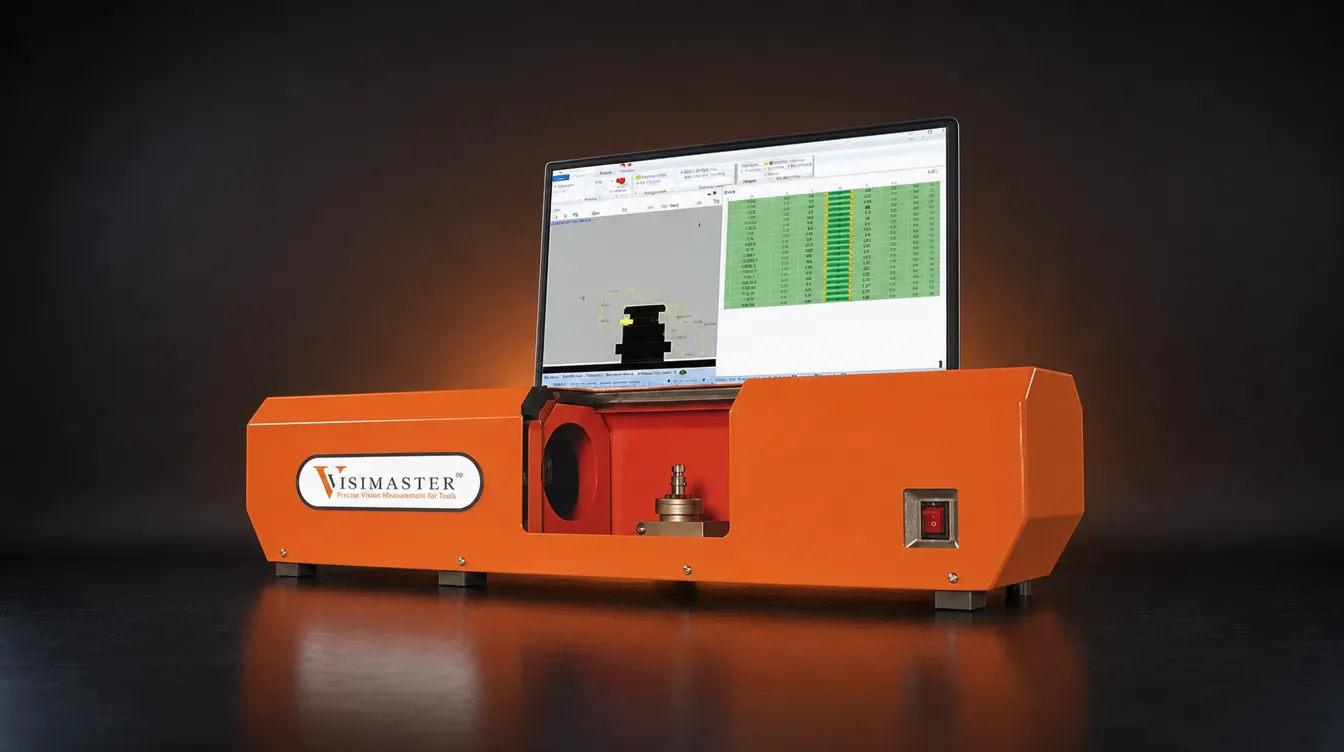

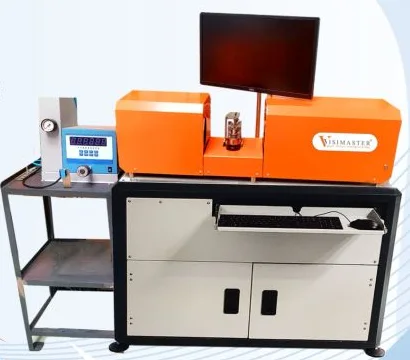

The Horizontal Visigauge, provided by Varad Automation & Robotics Pvt. Ltd., is a vision inspection machine specifically designed for inspecting precision and turned components. It is a state-of-the-art machine that enables one-click measurements with high precision and accuracy. The Horizontal Visigauge allows for quick and effortless measurements with just a single click. It offers the convenience of automatic and manual data saving, including batch-wise reports and SPC (Statistical Process Control) reports.

The machine requires minimal maintenance, ensuring hassle-free operation. The Horizontal Visigauge is specifically designed for inspecting small plastic parts, turned components, precision brass components, automotive components, and precision machined parts.

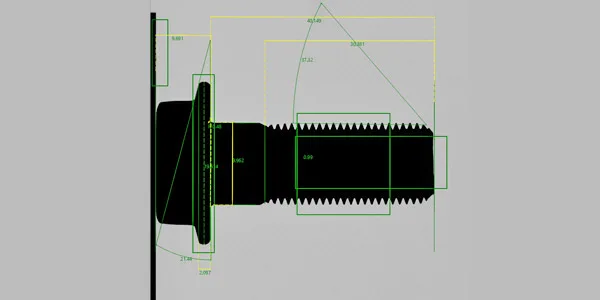

This unique instrument is capable of inspecting more than 25 dimensions of the parts in a fraction of a second. Horizontal Visigauge can measure parameters such as OD, step OD, step height, total height, groove width, angle, radius, chamfer angle, chamfer width, thread minor diameter, thread major diameter, thread helix angle, thread PCD, and reverse threads.

The Horizontal Visigauge provides excellent repeatability, starting from 1 micron*. It features an intuitive and user-friendly interface, making it easy to operate and teach the system. Varad Automation & Robotics Pvt. Ltd. offers prompt online support for any technical assistance or queries.

Inspection Parameters:

Dimensions

OD
Step OD
Step height
Total Height
Groove width

Angle, Radius
Chamfer Angle
Chamfer width
Thread Minor Diameter, Thread Major Diameter
Thread Helix Angle, Thread PCD, Reverse Threads

Specifications:

Model

HVG-3624-20

HVG-5335-20

HVG-6543-20

FOV Width

FOV Length

Repeatability

1 micron*

1.5 micron*

2 micron*

Data Report & Backup

.xls, Through USB

Dimensions(L x W x H)

940 x 170 x 210 mm

1040 x 270 x 320 mm

Why Choose Horizontal Visigauge

Horizontal Visigauge is a high-precision non-contact vision measuring machine designed for fast and reliable inspection of precision components. It combines one-click measurement, repeatability starting from 1 micron, SPC reporting, batch-wise data management, and low-maintenance operation. The system is suitable for turned parts, threaded components, fasteners, automotive parts, and precision machined components, helping manufacturers improve inspection speed, reduce manual errors, and maintain consistent quality standards.

Frequently Asked Questions

What dimensions can the Horizontal Visigauge inspect?
The Horizontal Visigauge can inspect and check more than 25 dimensional parameters, including outer diameter, inner diameter, length, step dimensions, angle, radius, chamfer angle, chamfer width, thread major diameter, thread minor diameter, thread helix angle, thread PCD, reverse threads, and other geometric features of precision components.
What accuracy and repeatability does the Horizontal Visigauge provide?
The Horizontal Visigauge provides repeatability starting from 1 micron for high-precision non-contact measurement of shafts, fasteners, turned parts, threaded components, and other precision-engineered parts.
Which industries use the Horizontal Visigauge?
The Horizontal Visigauge is widely used in fasteners, automotive components, precision machining, aerospace, electrical components, medical components, and other manufacturing industries requiring accurate dimensional inspection and quality control.
